The SuperTarzan^TM MQ7260A/IBA Series Power Modules are non-isolated dc-dc converters that operate over a wide input voltage range of8Vdc to 14Vdc, and provide a precisely (2%) regulated dc output with industry standard pin out. Such a module is suitable to application with 12V power supply bus. The modules have a maximum output current rating of 20A at a typical full-load efficiency over 95%. Standard features include remote on/off with optional logic mode and trimmed output voltage, over-current protection, over-temperature protection. Option features include output voltage remote sense compensation.

Features

Ø  Wide operating voltage:  8V~14V

Ø  Output Current up to 20A

Ø  Output voltage ripple: 20mV_PP

Ø  High Efficiency 95%

Ø  Overcurrent /shortcircuit protection

Ø  Over-temperature protection

Ø  Remote on/off control – negative or positive logic

Ø  High reliability: designed to meet 5 million hour MTBF

Ø  Output voltage remote sense compensation  (″s″ suffix)

Ø  Minimal space on PCB:

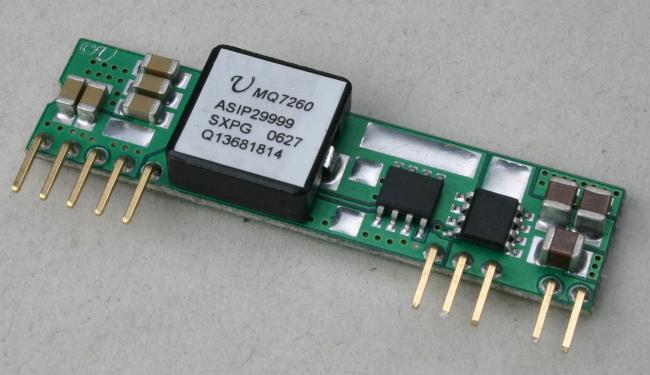

¨     TH: 2.0 in x 0.5 in x 0.31 in

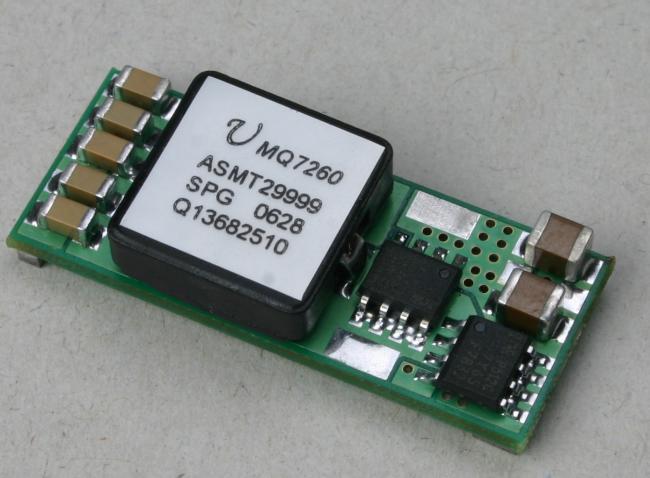

¨     SMT 1.30 in x 0.53 in x 0.265 in

Ø  No derating to +75℃, natural convection

Ø  UL/IEC/EN60950 compliant

Ø  RoHS Compliant available

Options

Ø  Output voltage remote sense

Ø  Right Angle (Through Hole pin-out)

Ø  Remote Control Logic mode

¨  Workstations, servers

¨  DSP applications

¨  Distributed power architectures

¨  Telecommunications equipment

¨  Data communications equipment

¨  Wireless communications equipment
