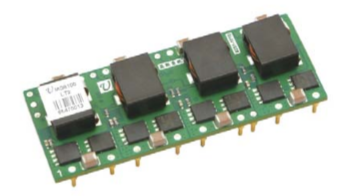

MQ8100L

MQ8100L

6~14VDC input, 0.8~2V output, 100A with current share DC-DC Converter

Share: more
  • Product
  • Product Features
  • Applications
The MQ8100L2 series Power Modules are non-isolated dc-dc converters that operate over a wide input voltage range of 6Vdc to 14Vdc and provide a precisely (2%) regulated dc output with industry standard pin configuration. Such a module is suitable to application with unregulated 12V power supply bus. The modules have a maximum output current rating of 100A at typical full-load efficiency over 93%. Standard features include remote on/off with positive logic and output voltage adjustment, over-current protection, over-temperature protection. Option features include through hole or SMD.
